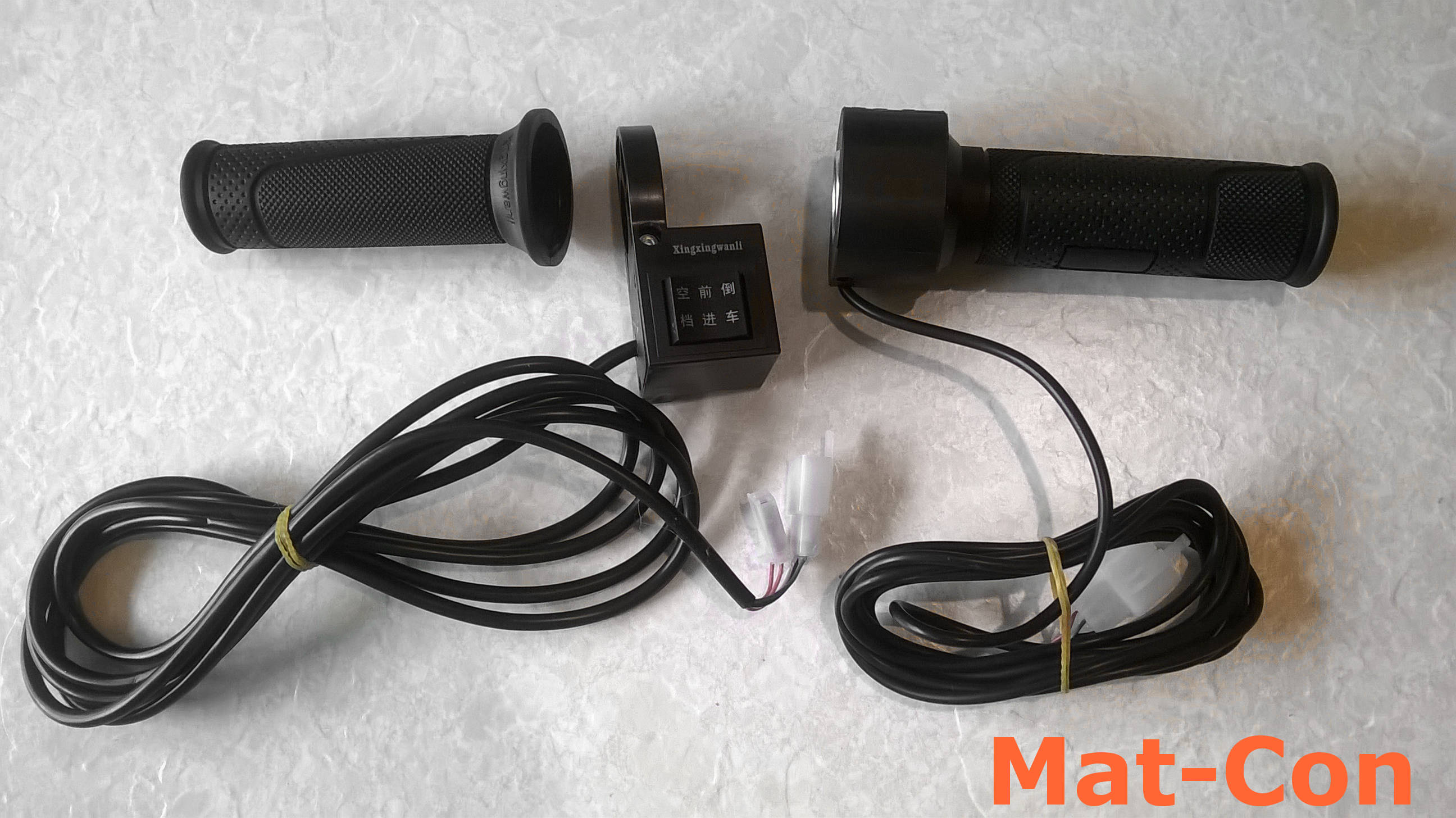

Set hand throttle hall regulator 5V + switch, rubber grip counterpart

In stock

35.00
Price incl. VAT, plus Shipping
Delivery weight: 0.35 kg


Item name:
Set hand throttle hall regulator 5V + switch, rubber grip counterpart


Brand:
W A Electrical Machinery Co. Ltd.


Model/type & pictures:
WA_reg

WA Set hand throttle with switch




Performance data:

hall regulation voltage (not motor voltage):

5V DC in, 1 – 4,5 V out

cables, colour coding:

3 wires for throttle; 2x2 wires for switch

weight:

350 g




Note:
This regulator works with a hall sensor, it is no poti (potentiometer).

The rocker switch has center position (OFF) and two switch settings (left and right, ON), all resting. You only can choose one of the two switch settings at the same time.




External dimensions:

housing length incl. grip

~15 cm

inside diameter (for mounting)

2,2 cm

cable length

150 cm



Sonstige Merkmale:
-rocker switch: NO-NC-NO, resting
-CE certified
-material: rubber / plastic
-for right hand mounting
-legal warranty: 24 month


Areas of applications:

This hand regulator is suitable e. g. for electric scooter, (SMFC) scooter, e-scooter, fun-scooter, trottinette, pocket bike, pocketbike, tricycle, quad bike, electric quad bike, kids quad bike, longboard, electric board, e-board, electric bike, e-bike, recumbent bike, soap-box, rickshaw, trishaw, Velotaxi, tensile device, tensile device for wheelchairs, electric wheelchair, railway, garden railway, small railway, big railway, steam railway, park railway, model railway, narrow gauge railway, cart, electric car, e-car, golf cart, hand bike, pedal boat, electric pedal boat, plane, helicopter, model making, miniature making, theater engineering, stage engineering, industry, machines... .

Available accessories:

controller, motor, lead acid battery, charger, relay ...
