Electric motor controller DC <=1000W 1KW 24V 40A

In stock

150.00 €

Price incl. VAT, plus Shipping

Delivery weight: 0.3 kg

Description

Item name:
Electronic PMDC Brush Motor Controller 24V <=1000W 40A

Brand:
Lantian Electron. Co. Ltd.

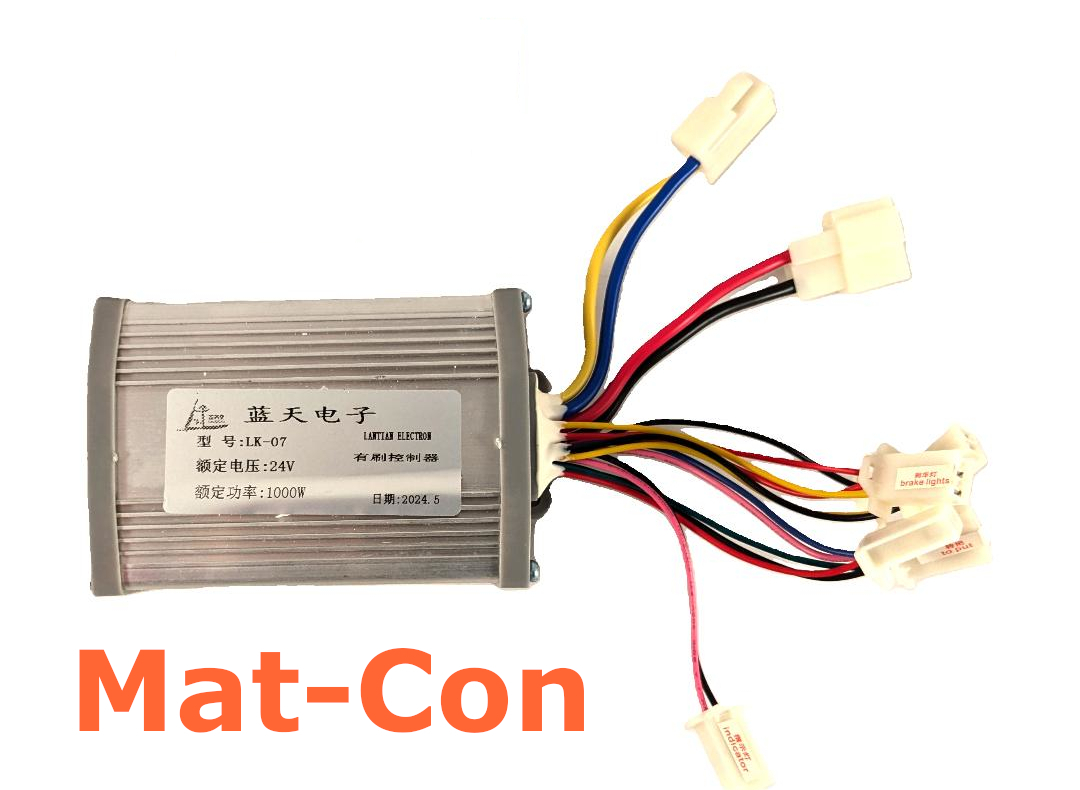

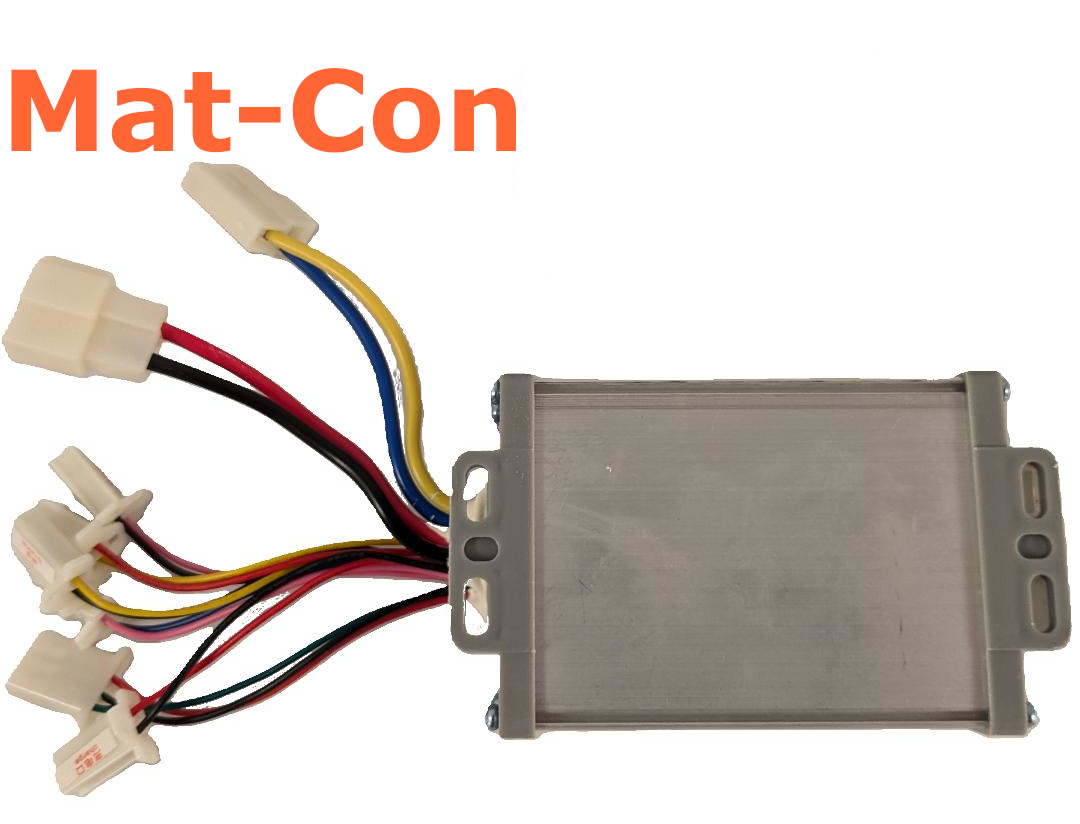

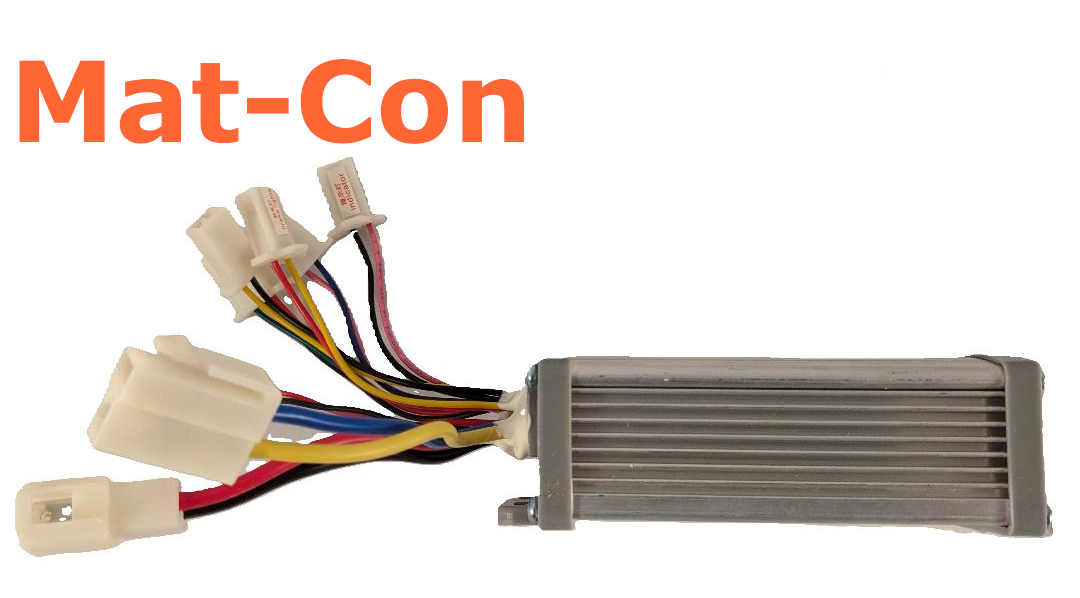

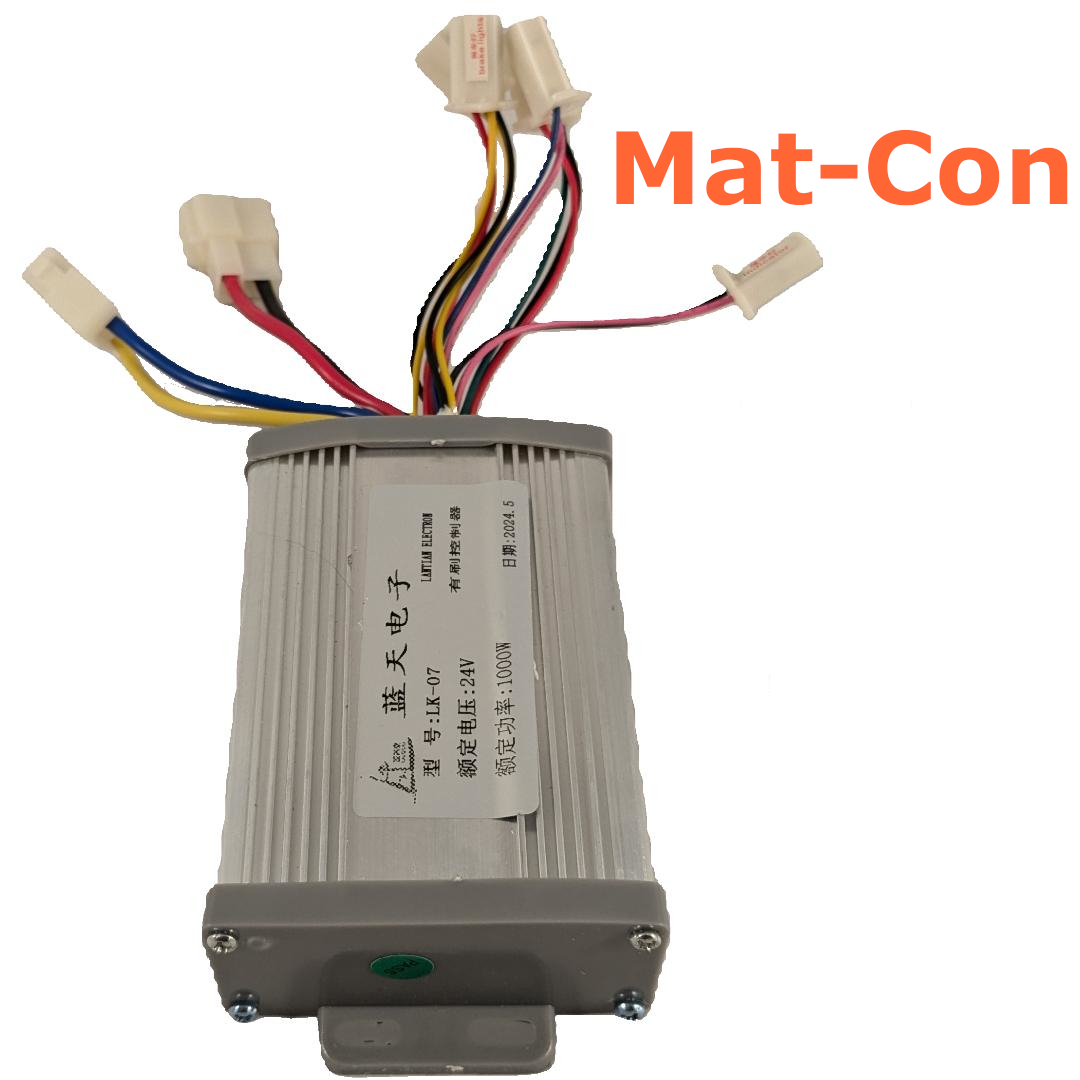

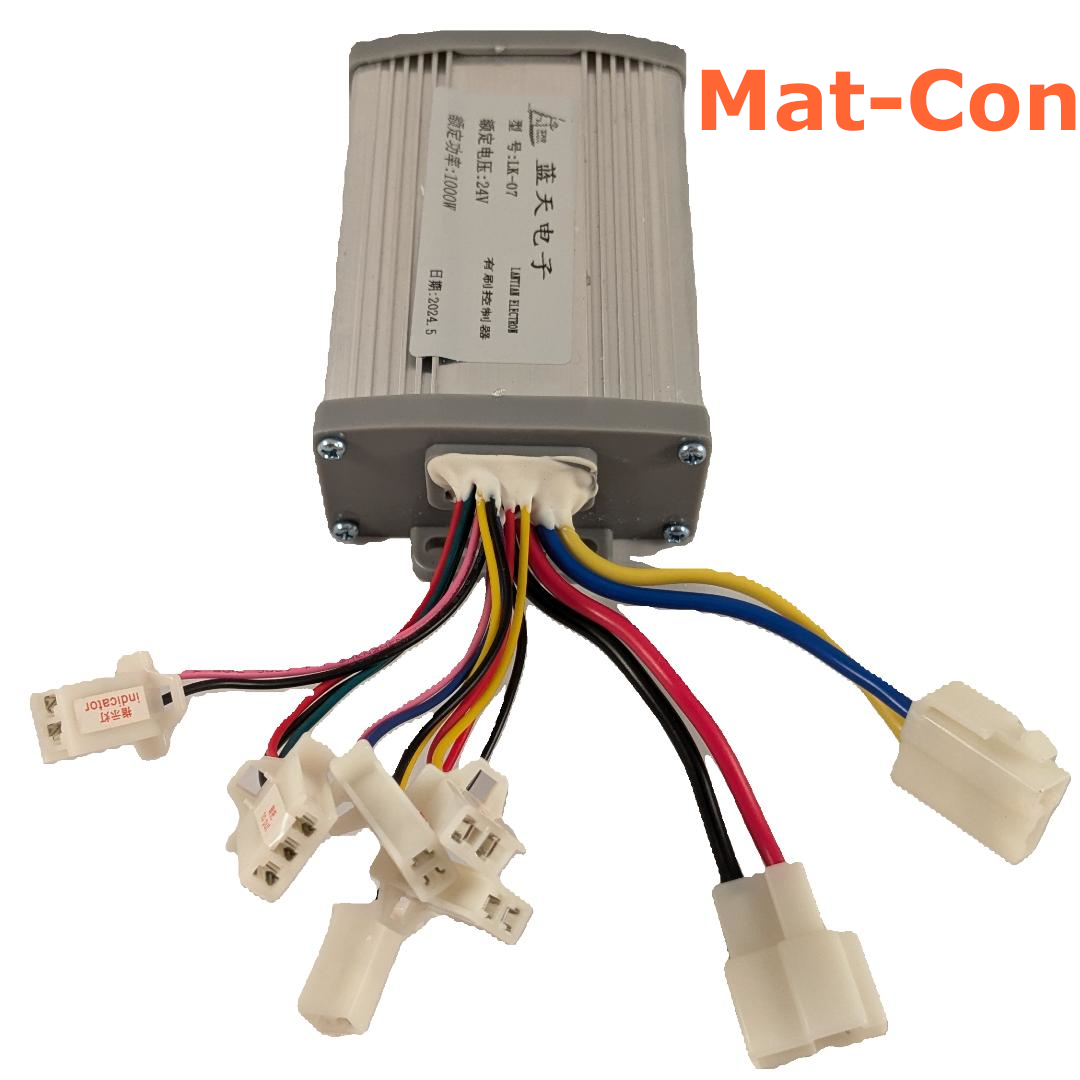

Model/type & pictures:
LK07


		stock photos

Performance data:
Voltage (nominal)	24V
Threshold voltage	20V +/- 1 V
Power (max.)	<= 1000 W / 1 KW
Current (max.)	40A +/- 1 A

Dimensions & weight:
Length	12.2 cm
Width	7.2 cm
Height	4.1 cm
Mounting holes distance	11.0 cm / 2.3 cm
Weight	230 g

Further attributes:
- usuable for carbon brushed motors, pmdc, two cables
- undervoltage protection
- overload protection
- labeled plugs
- infinitely controlling by 0.8-4.2V hall regulator
- housing material: aluminium, mounting holes
- splash-water proof
- operating temperature range: – 20°C - + 45°C
- CE certified
- legal warranty: 24 month

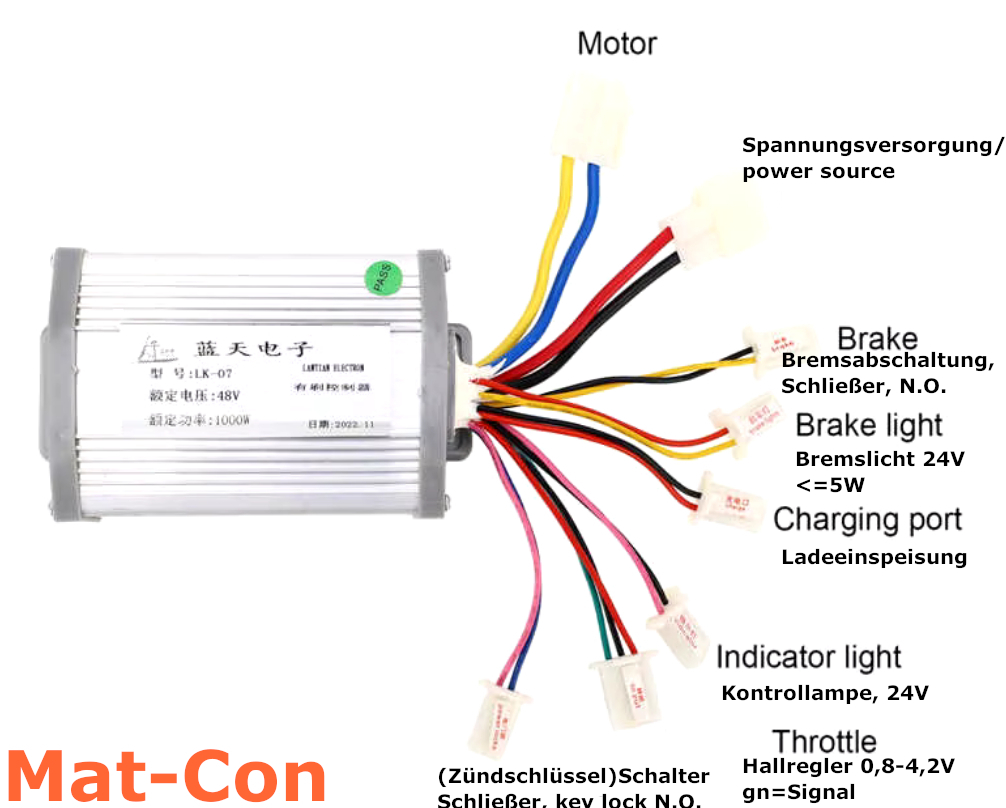

Wiring scheme:

Note:
Deviations possible, connectors & cables maybe vary. Most of the wires are optional and are not neccessary for controller usage.

Delivery includes fuse set.

Areas of applications:
This brush motor controller is suitable e. g. for e-scooter, tricycle, quad bike, electric quad bike,

rickshaw, trishaw, Velotaxi, park railway, ,go-cart, electric car, e-car, mini car, city car, golf cart, rider-controlled truck, forklift, lifting cart, model making, miniature making, theater engineering, stage engineering, industry, machines... .

This pmdc motor driver manages the infinitely speed of electric DC motor.

Available accessories:
PMDC Motor, hall regulator (hand trottle, thumb throttle, pedal, hand lever), (key) switch … .
