4Q Controller with recuperation regenerative braking, 12-48V, 30/70A rated current, peak 50/100A

Item name:
4Q Controller with recuperation regenerative braking, reverse


Brand:
Jinan Keya Electronic Co., Ltd

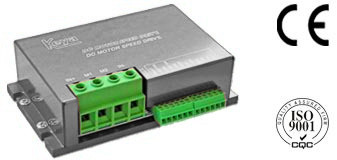

Model/type & pictures:
MMT-4Q

Further attributes:
- for 2-pole electric DC motors
- Four Quadrant regulator
- PWM – Technology
- recuperation = regenerative braking energy
- electric engine brake
- reverse function = for- & backward, right + left turning, infinitely
- regulation with hallsensor signal (0-5V) or  potentiometer
- Softstart & Softstop 0,2 – 20 sec
- Status LEDs
- overvoltage or undervoltage protection
- overheating protection
- mounting holes
- CE certified
- legal warranty: 24 month

Connection plan:

Note: Delivery includes fuse set.

Areas of applications:

This 4 Quadrant reversible controller with regenerative motor braking function (=eddy current brake / hysteresis brake) is suitable e. g. for electric scooter, (SMFC) scooter, e-scooter, fun-scooter, trottinette, pocket bike, pocketbike, tricycle, quad bike, electric quad bike, kids quad bike, longboard, electric board, e-board, electric bike, e-bike, recumbent bike, soap-box, rickshaw, trishaw, Velotaxi, tensile device, tensile device for wheelchairs, electric wheelchair, railway, garden railway, small railway, big railway, steam railway, park railway, model railway, narrow gauge railway, cart, electric car, e-car, golf cart, hand bike, pedal boat, electric pedal boat, plane, helicopter, model making, miniature making, theater engineering, stage engineering, industry, machines... .
This regenerative recuperation regulator manages the infinitely speed of electric DC motor, switches the motor's turning direction forward and reward and uses electric braking, what brings energy back to the batteries / accus.

vailable accessories:

Motor, lead acid battery, charger, potentiometer, pedal, switch, key switch … .
