Kelly KLS-RM sinusoidal BLDC controller 48-168V <=1800A 201KW Boost field-weakening

In stock

starting from 600.00
Price incl. VAT, plus Shipping
Delivery weight: 2 kg


Item name:
Sinusodial BLDC controller 48-168V 1800A 201KW field-weakening boost, CAN-bus, bluetooth, liquid-cooling


Brand:
Kelly Controls



Model/type & pictures:
KLS RM

BLDC Sinuswellen Controller Kelly KLS7225RM

stock photos KLS725RM

BLDC Sinuswellen Controller Kelly KLS7235RM Feldschwächung field weakening boost

active cooling / fan cooling

BLDC Racing Motor Controller Kelly KLS84150RMO

KLS84150RMO

Areas of applications:
This sine-wave brushless PM motor controller with field weakening boost for max. power enhancement, high acceleration & speed increase is well matching for racing / race engines. By default, this race motor controller has regenerative motor braking function and is compatible for brushless motors with permanent magnets (BLDC) with hall sensors. Suitable e. g. for e-scooter, e-motorbike, e-motorcycle, motorcross, tricycle, electric quad bike, rickshaw, trishaw, Velotaxi, park railway ,go-cart, electric car, e-car, mini car, city car, golf cart, rider-controlled truck, forklift, lifting cart, municipal vehicle, electric transporter / truck, theater engineering, stage engineering, industry, machines... .
It manages the infinitely speed of electric BLDC motor, switches the motor's turning direction forward and reward and uses electric braking, what brings energy back to the batteries / accus.
This controller is
customisable / programmable versatilely (soft-start, soft-stop, max. rpm / max. speed, current limit...)



We will offer you the best matching controller depending on your motor specifications.

Drive set assembly on your individual specifications.

Performance data:

Model

KLS-RM
²) fan cooling

working voltage
(min./max.)

rated power/
liquid-cooled/
max. *

rated current/
liquid-cooled

peak current
20sec Boost

dimensions
L x W x H
mm **

wei­ght
Kg

7225

48-72V DC (36-86V)

7.5/-/18KW

100A/-

250A

140x100x62

1.8Kg

7230

48-72V DC (36-86V)

8/-/21.5KW

110A/-

300A

140x100x62

1.8Kg

7235 ²

48-72V DC (36-86V)

8.5/-/25KW

120A/-

350A

171x116x71

2.0Kg

7240 ²

48-72V DC (36-86V)

9.5/-/28.5KW

130A/-

400A

171x116x71

2.0Kg

7245

48-72V DC (36-86V)

10/-/32KW

140A/-

450A

194x126x71

2.5Kg

7250 ²

48-72V DC (36-86V)

11/-/36KW

150A/-

500A

212x155x98

5.5Kg

7260 ²

48-72V DC (36-86V)

13/-/43KW

180A/-

600A

212x155x98

5.5Kg

8425

48-84V DC (36-100V)

8.5/-/21KW

100A/-

250A

111x58x45

1.9Kg

8428 ²

48-84V DC (36-100V)

9.5/-/23.5KW

110A/-

280A

125x100x62

1.9Kg

8430 ²

48-84V DC (36-100V)

10/-/25KW

120A/-

300A

171x116x71

1.9Kg

8445 ²

48-84V DC (36-100V)

12/-/37.5KW

140A/-

450A

171x116x71

5.5Kg

8460 ²

48-84V DC (36-100V)

13/-/50KW

150A/-

600A

288x186x108

5.5Kg

8480

48-84V DC (36-100V)

17/27/67KW

200/320A

800A

288x186x108

5.5Kg

84100

48-84V DC (36-100V)

21/34/84KW

250/400A

1000A

288x186x108

5.5Kg

84120

48-84V DC (36-100V)

25/41/100KW

300/480A

1200A

288x186x108

5.5Kg

²) with active cooling (by fan), depending on model




Opto-isolated:

Model
opto-iso.

KLS-RMO

working voltage
(min./max.)

rated power/
liquid-cooled/
max. *

rated current/
liquid-cooled

peak current
20sec Boost

dimensions
L x W x H
mm **

wei­ght
Kg

84150

48-84V DC (36-100V)

32/51/126KW

375/600A

1500A

291x268x116

7.3Kg

84180

48-84V DC (36-100V)

38/61/151KW

450/720A

1800A

291x268x116

7.3Kg

1270

48-110V DC (36-132V)

19/31/77KW

175/280A

700A

288x186x108

5.5Kg

1285

48-110V DC (36-132V)

23/38/93.5KW

210/340A

850A

288x186x108

5.5Kg

12100

48-110V DC (36-132V)

28/44/110KW

250/400A

1000A

288x186x108

5.5Kg

12130

48-110V DC (36-132V)

36/58/143KW

325/520A

1300A

291x268x116

7.3Kg

12160

48-110V DC (36-132V)

44/71/176KW

400/640A

1600A

291x268x116

7.3Kg

1460

48-144V DC (36-173V)

22/35/86KW

150/240A

600A

288x186x108

5.5Kg

1490

48-144V DC (36-173V)

33/52/129.5KW

225/360A

900A

291x268x116

7.3Kg

14110

48-144V DC (36-173V)

40/64/158KW

275/440A

1100A

291x268x116

7.3Kg

14130

48-144V DC (36-173V)

47/75/187KW

325/520A

1300A

291x268x116

7.3kg

1680

48-168V DC (36-200V)

34/54/134KW

200/320A

800A

291x268x116

7.3Kg

16100

48-168V DC (36-200V)

42/68/168KW

250/400A

1000A

291x268x116

7.3Kg

16120

48-168V DC (36-200V)

51/81/201.5KW

300/480A

1200A

291x268x116

7.3Kg

*) When max. rated voltage, or else lower. / Depending on motor's efficiency.
**) dimensions without optional liquid-cooling-unit

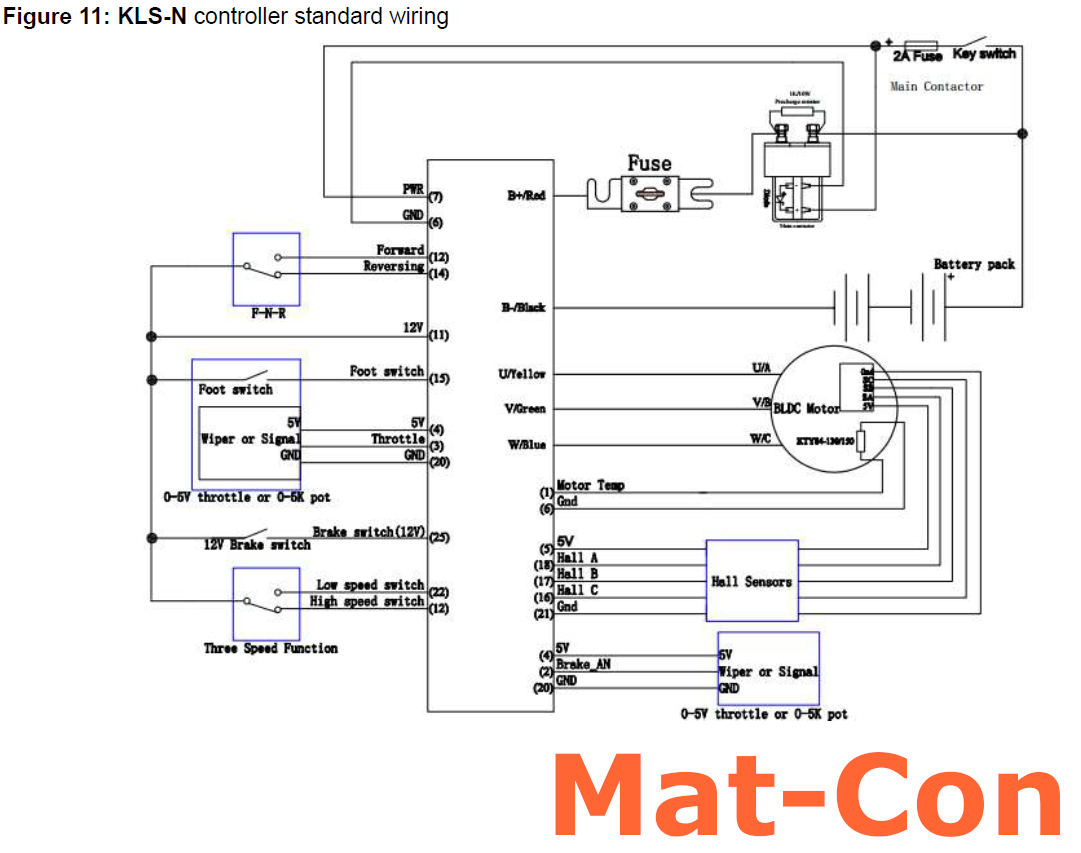

Wiring plan:

Anschlussübersicht
Click to enlarge.

Note:
Delivery includes wire harness with plug(s), fuse (set) and manual.



Technical data:
- usuable for brushless (BLDC) permanent magnet motors with hall sensors
-
programmable/customisable via serial interface or optional: bluetooth
- free software, os: ms windows, android

- fault code output acoustically & by program/app
- any number of motor poles supported
- up to 70,000 electric rpms ERPM
- Intelligent control by microprocessor

- Synchronous rectification, ultra low loop
- fast PWM
(space vector control SVC, SVM, SVPWM) and field orientated commutation FOC)
to achieve very high efficiency
- Boost mode also available manually (by N/O contact or kickdown)
- max. up to 2x field weakening
- powerful MOSFETs inside
-
operation frequency 10/20kHz
- voltage monitoring on motor phases, bus and power supply + 5 & 12V

- current sense on motor phases
- current limit & power regulation, adjustable

- over-voltage and low-voltage protection, adjustable
- over-temperature protection (+ optional usuable motor temperature sensor), adjustable
- wiring fault detection & protection/cut-off
- smooth controllable by hall regulator 0-5V or potentiometer
- joystick throttle support.
A bi-symmetrical 0-5V signal for both forward and reversing.
- smooth motor brake = regen = recuperation = electric brake energy,
no N/O contact necessary, adjustable
- ABS anti-lock branking system (brake & recuperation)
- bidirectional = left/right turning, for-/backward, every direction limit free configurable 20-100%
- Cruise control
-
Longlife of all components, over 10,000 hours
- Low EMC
-
- Rugged aluminum housing for maximum heat dissipation and harsh environment.

Active cooling by ventilator depending on model.
- splashwater-resistant
- Temperature range -40°C - +100°C
- mounting holes

- CE certified
- 24 month warranty



Optional features, upgrade: upcharge; not afterwards possible!
- CAN-Bus, 250Kbps, +70€
-
Bidirektional anti-slip, avoids vehicle moving in the opposite direction, +100€

- liquid-cooling unit, +150€

- water-&dust proof, sealed aluminium housing, IP66 for opto-isolated models, +100€



Available accessories:
RS232-USB-Cable, Bluetooth-Adapter (programming software/app (Win, Android) for controller customisation you will receive by e-mail), BLDC Motor, hall throttle (hand, thumb or pedal) cockpit display unit, driving direction switch, key switch, DC-DC converter, battery, accu, charger...




Photos & technical drawings with dimensions:

Click the drawings to enlarge

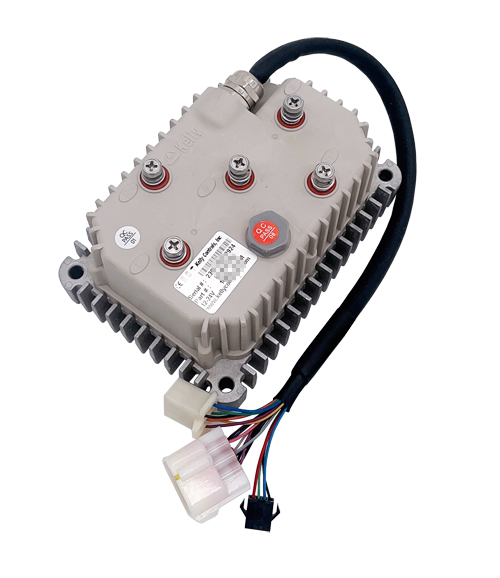

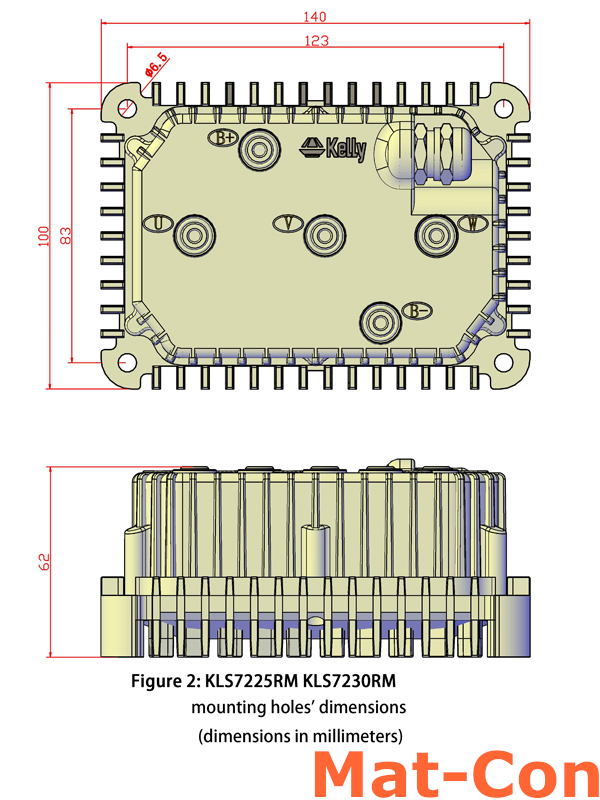

BLDC Sinuswellen Controller Kelly KLS7225RM

stock photo KLS72 25/30RM

BLDC Sinuswellen Controller Kelly KLS7225RM

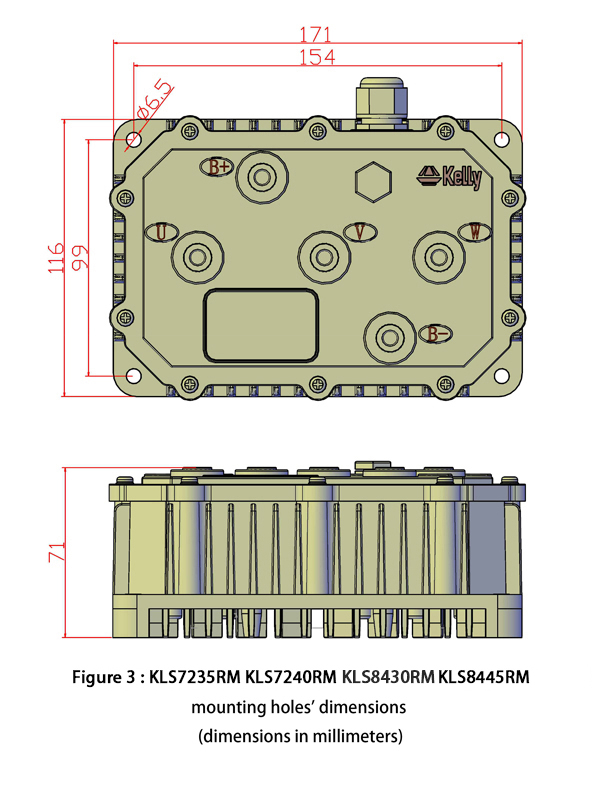

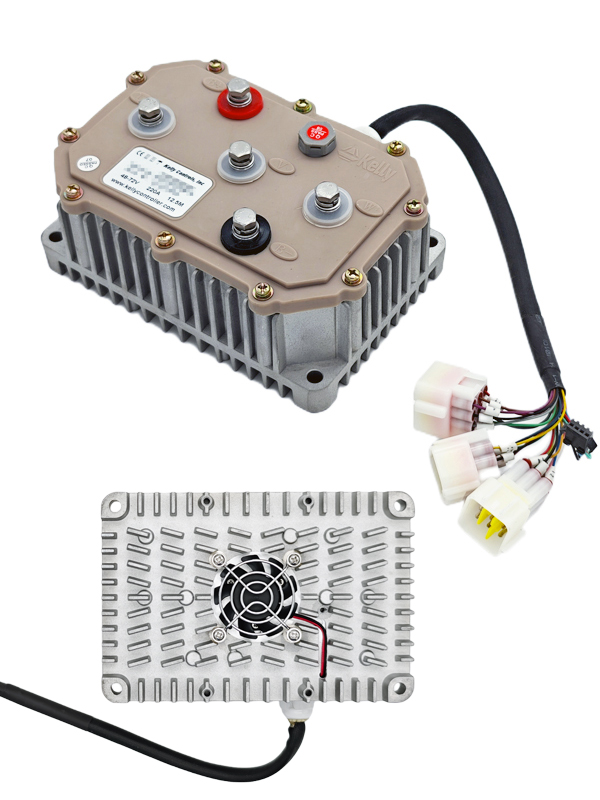

BLDC Sinuswellen Controller Kelly KLS7235RM

stock photo KLS72 35/40RM
KLS84 30/45RM

BLDC Sinuswellen Controller Kelly KLS7235RM

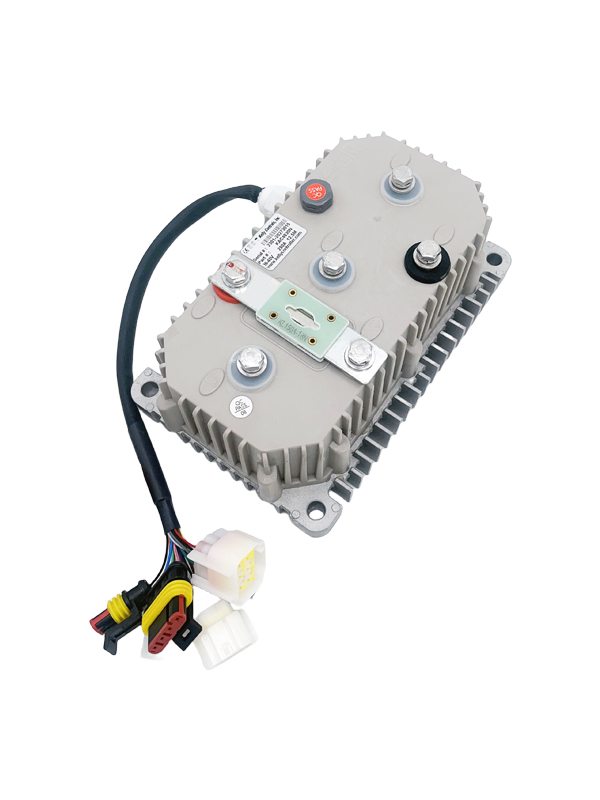

BLDC Sinuswellen Controller Kelly KLS7245RM

stock photo KLS745RM

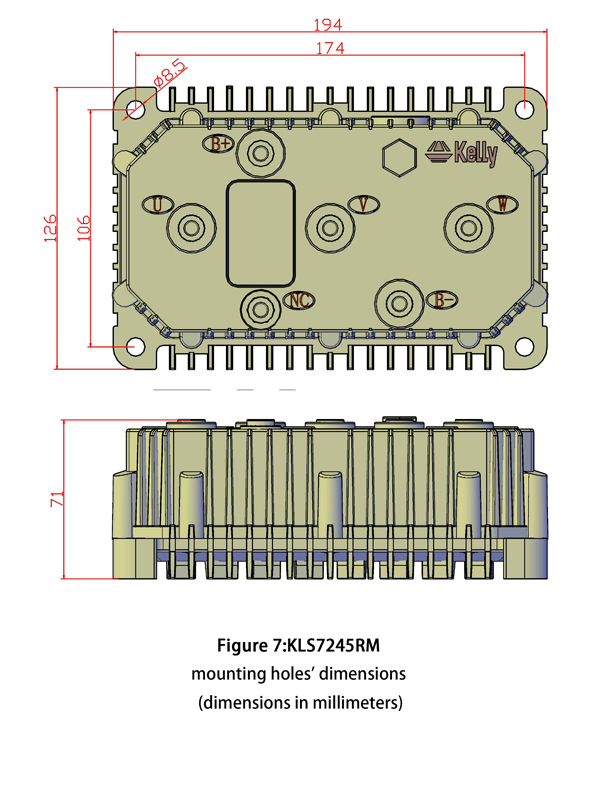

BLDC Sinuswellen Controller Kelly KLS7245RM

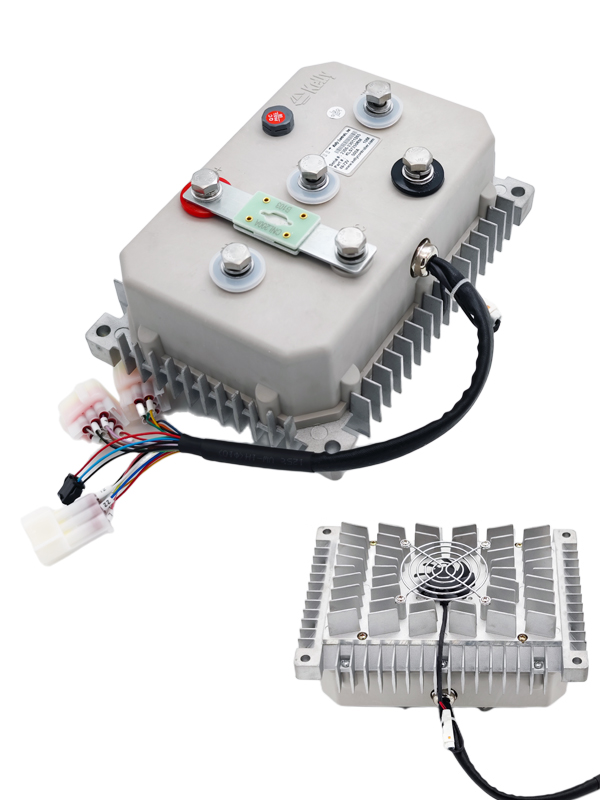

BLDC Sinuswellen Controller Kelly KLS7250RM

stock photo KLS72 50/60RM

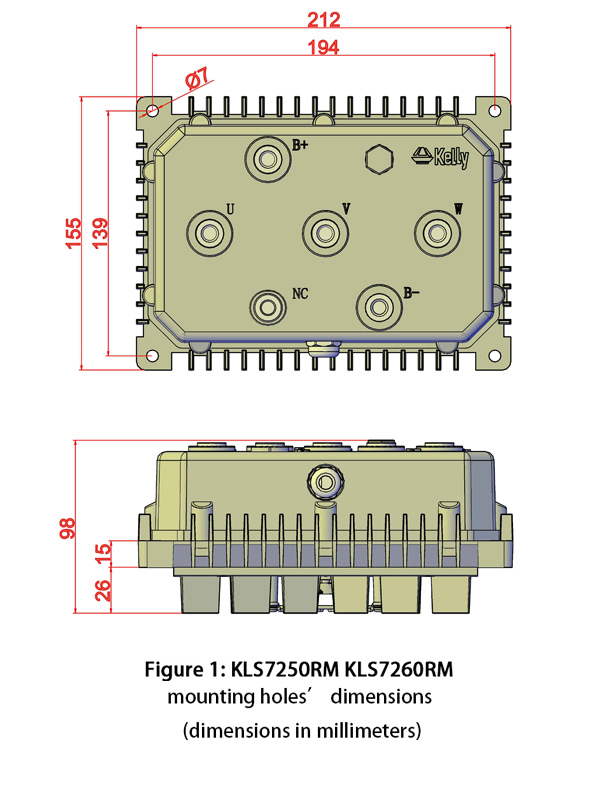

BLDC Sinuswellen Controller Kelly KLS7250RM

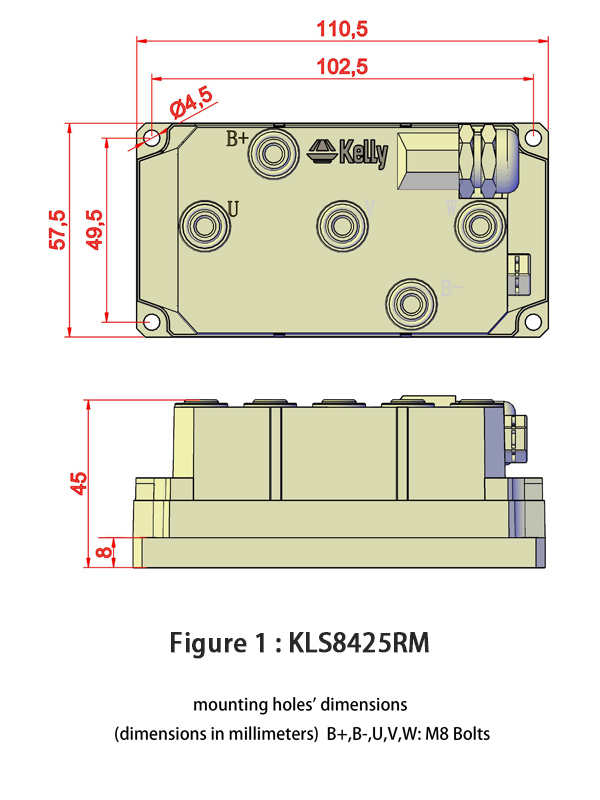

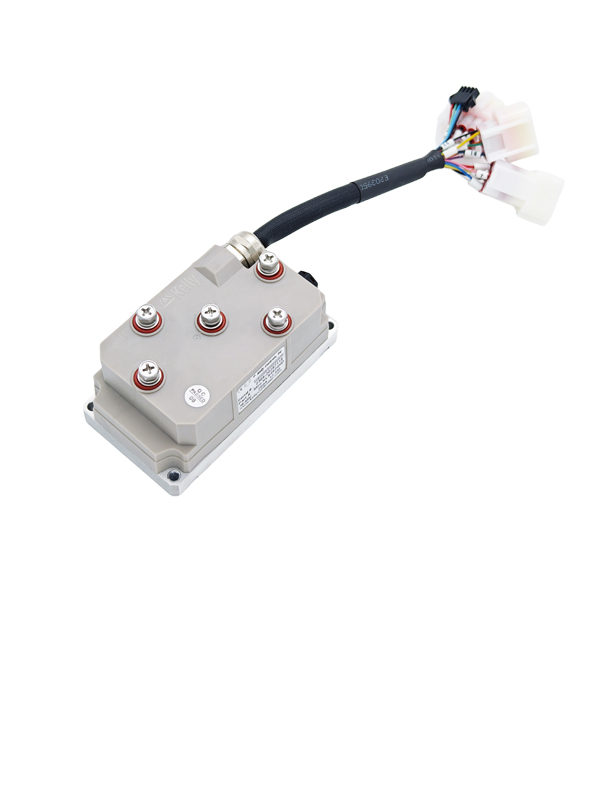

BLDC Sinuswellen Controller Kelly KLS8425RM

stock photo KLS8425RM

BLDC Sinuswellen Controller Kelly KLS8425RM

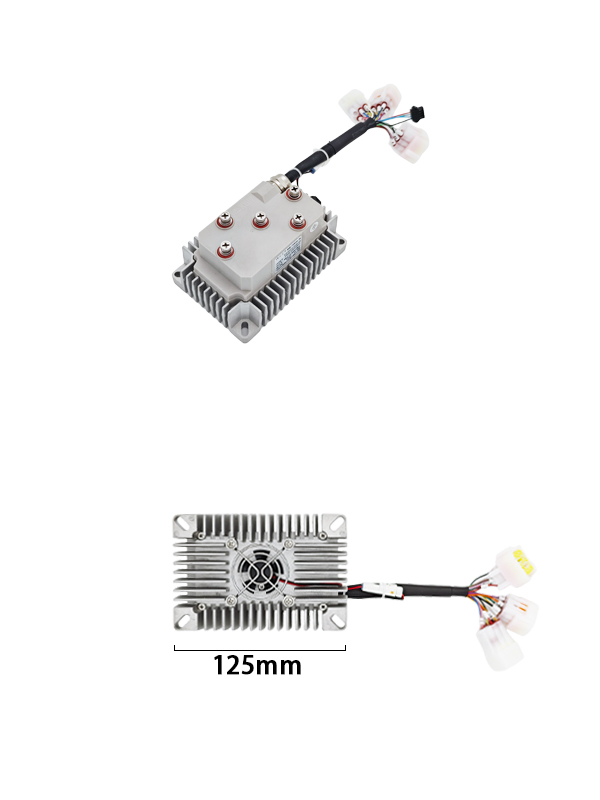

BLDC Sinuswellen Controller Kelly KLS8428RM

stock photo KLS8428RM

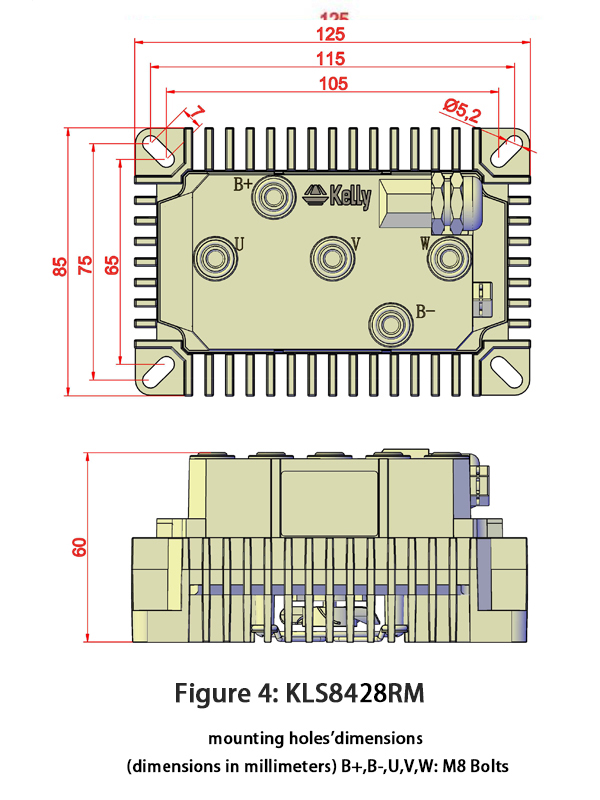

BLDC Sinuswellen Controller Kelly KLS8428RM

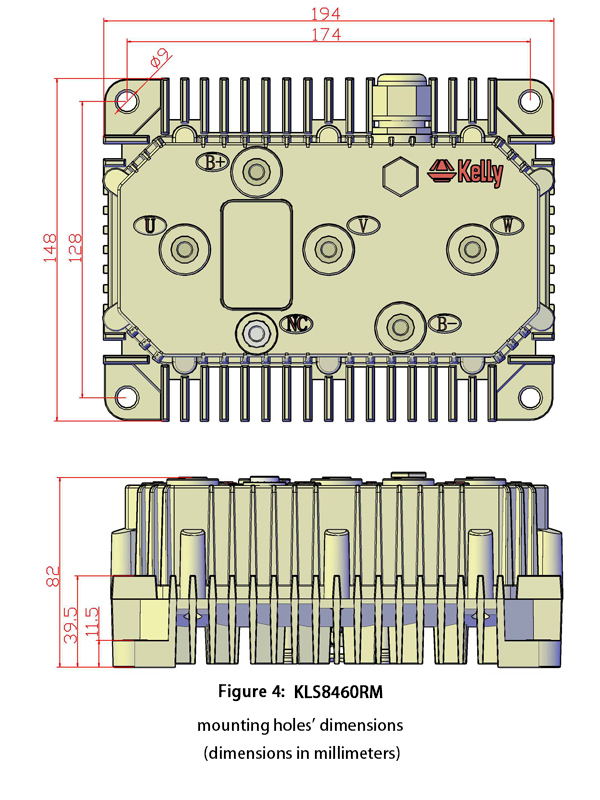

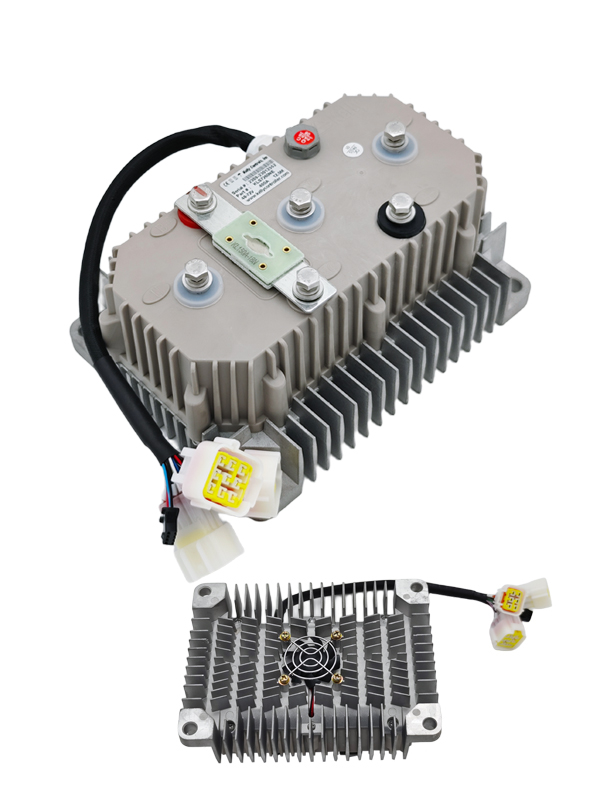

BLDC Sinuswellen Controller Kelly KLS8460RM

stock photo KLS8460, with active cooling

BLDC Sinuswellen Controller Kelly KLS8460RM

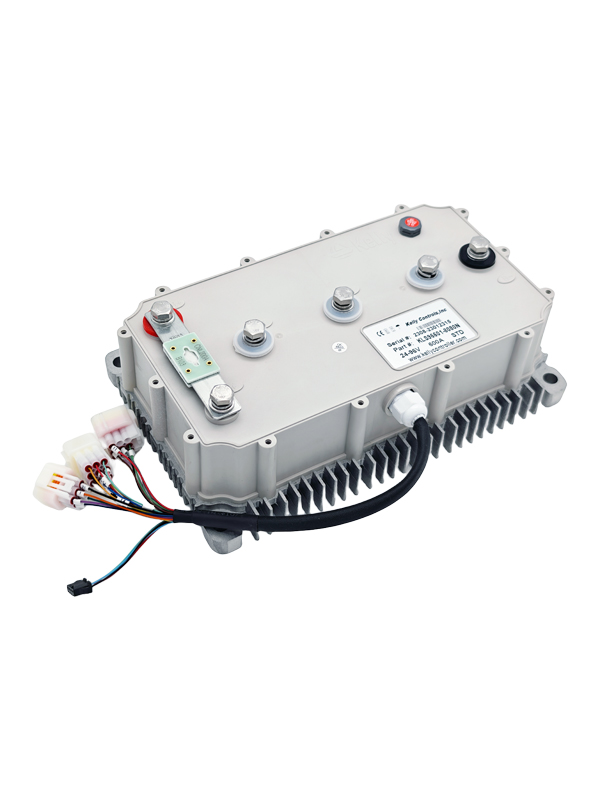

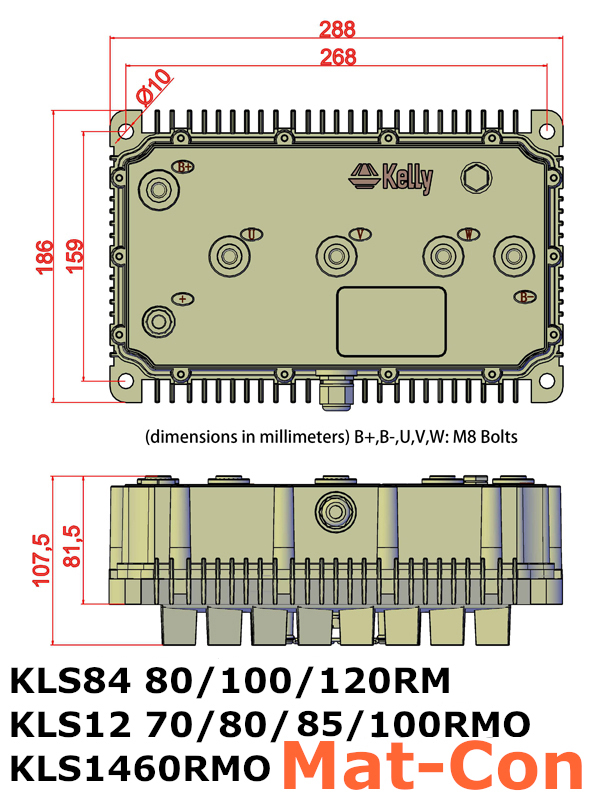

BLDC Sinuswellen Controller Kelly KLS8480RM

stock photo KLS84 80/100/120RM KLS12 70/80/85/100RMO KLS1460RMO

BLDC Sinuswellen Controller Kelly KLS8480RM

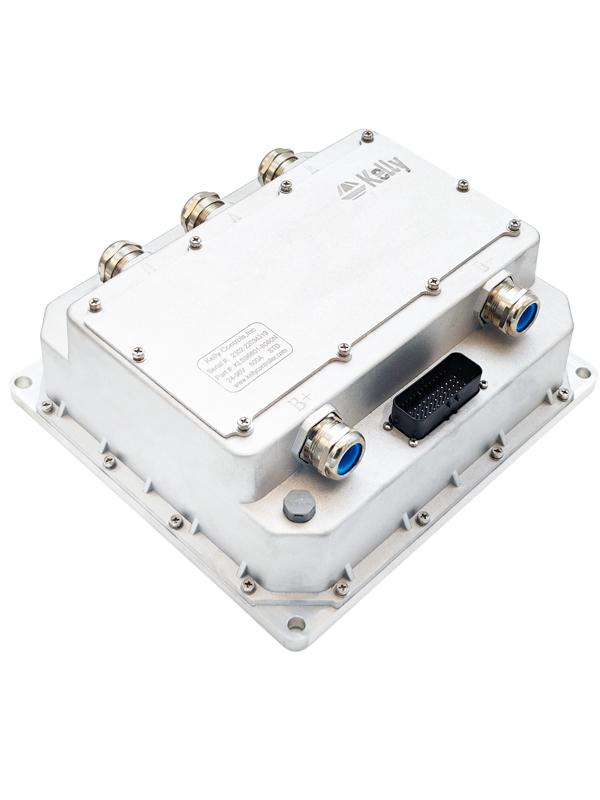

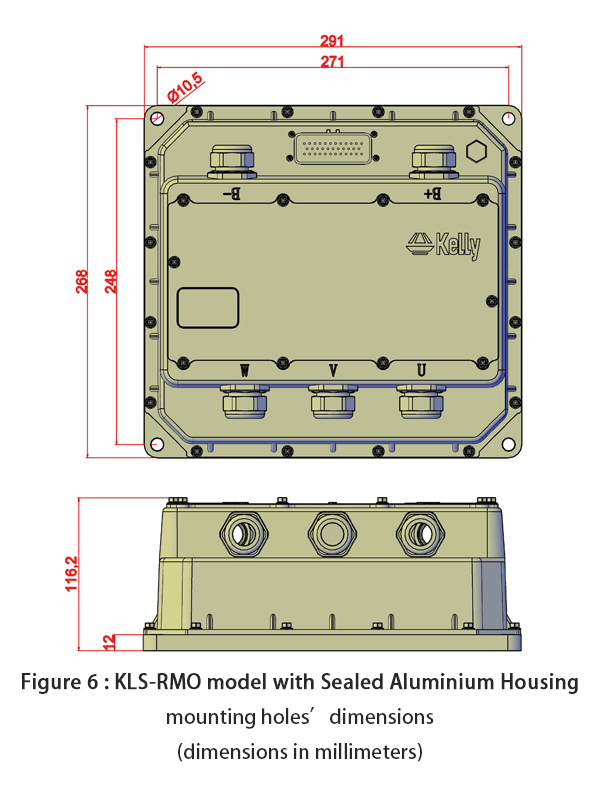

BLDC Sinuswellen Controller Kelly KLS84150RMO

stock photo KLS84150RMO
KLS12 130/160RMO
KLS14 90/110/130RMO
KLS16 80/100/120RMO

BLDC Sinuswellen Controller Kelly KLS84150RM





Optional liquid-cooling unit, depending on model:

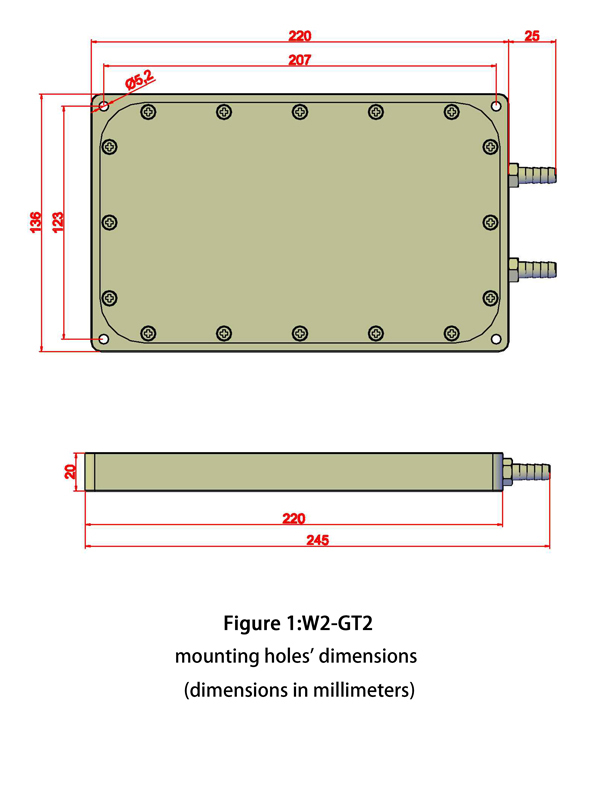

Liquid-cooling unit W2

BLDC Sinuswellen Controller Kelly KL RM Wasserkühlung

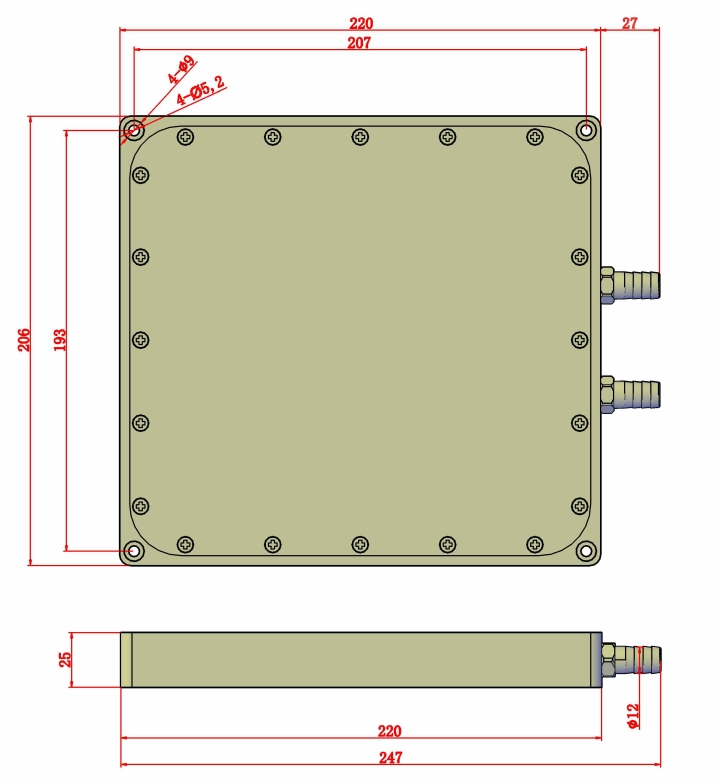

Liquid-cooling unit W3

BLDC Sinuswellen Controller Kelly KL RM Wasserkühlung
