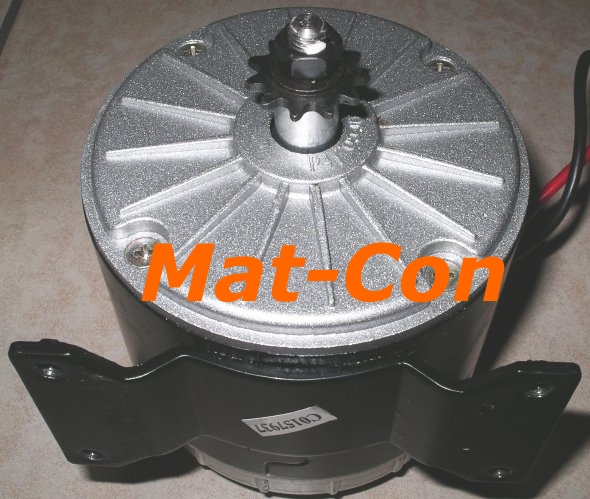

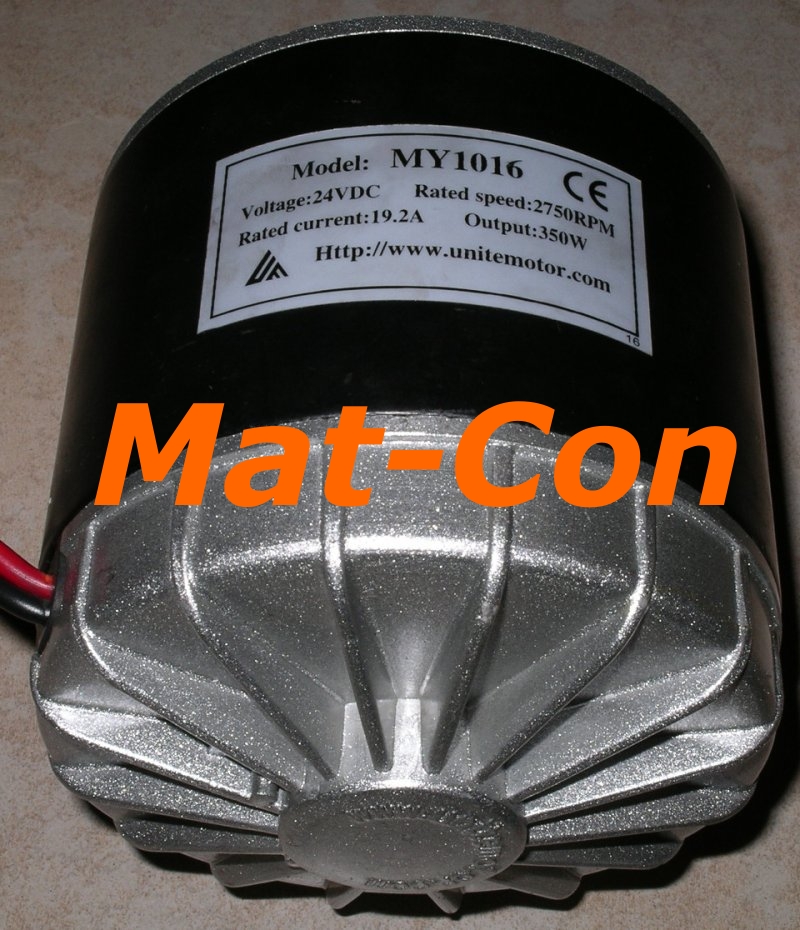

E-Motor Unite MY1016B4M6 DC 350W 24V, with chain sprocket, plate

In stock

85.00
Price incl. VAT, plus Shipping
Delivery weight: 2.7 kg


Item name:
Electric motor DC 350W 24V with chain sprocket, plate

Brand:
Zhejiang Unite Electric Motor Co., Ltd.


Model/type & pictures:
MY1016B4M6












Performance data:

power output

350 W / 24 V

rated current

<=19,2 A

rated speed (rpm)

2750 +/- 5 %

max. speed (rpm)

3350 +/- 5 %

current without load

<= 2,5 A

rated torque

1,22 Nm +/- 5 %

transmission

chain sprocket (11 teeth, pitch 1/4“=6,35 mm), exchangeable, fixation nut

shaft diameter

10 mm (milled groove one-sided 1,5 mm)

efficiency

>=76%

weight

2,7 KG


Characteristic curve:

Kennlinien
Click on picture to enlarge.



External dimensions:

housing length

10,85 cm

housing width / diameter

10,1 cm

total height (with plate)

11,6 cm



Plate dimensions:

length

111 mm

width

55 mm

lengthwised hole distance

93 mm

widthwised hole distance

42 mm


Technical drawing & dimensions:

Maße
Click on picture to enlarge.


Further attributes:
-carbon brushes, 4pcs
-ball bearing
-Ingress Protection Rating IP–Code: IP33
-CE certified
-both sides turning
-legal warranty: 24 month


Areas of applications:
This direct current electric motor is suitable e. g. for electric scooter, (SMFC) scooter, e-scooter, fun-scooter, trottinette, pocket bike, pocketbike, tricycle, quad bike, electric quad bike, kids quad bike, longboard, electric board, e-board, electric bike, e-bike, recumbent bike, soap-box, rickshaw, trishaw, Velotaxi, tensile device, tensile device for wheelchairs, electric wheelchair, railway, garden railway, garden railway, small railway, big railway, steam railway, park railway, model railway, narrow gauge railway, cart, electric car, e-car, golf cart, hand bike, pedal boat, electric pedal boat, plane, helicopter, model making, miniature making, theater engineering, stage engineering, ... .

Also suitable as generators to power generation, e. g. for wind turbines, wind generators, windmills, waterworks, water wheels, water turbines, water generators etc.


Available accessories:
Controllers, lead acid batteries, chargers, throttles, chains, chainrings, sprockets ...
