E-Motor Unite MY6812GR 150W 12V DC with belt pulley

In stock

60.00
Price incl. VAT, plus Shipping
Delivery weight: 1.4 kg


Item name:

Electric motor DC 150W 12V with belt pulley



Brand:

Zhejiang Unite Electric Motor Co., Ltd.



Model/type & pictures:

MY6812

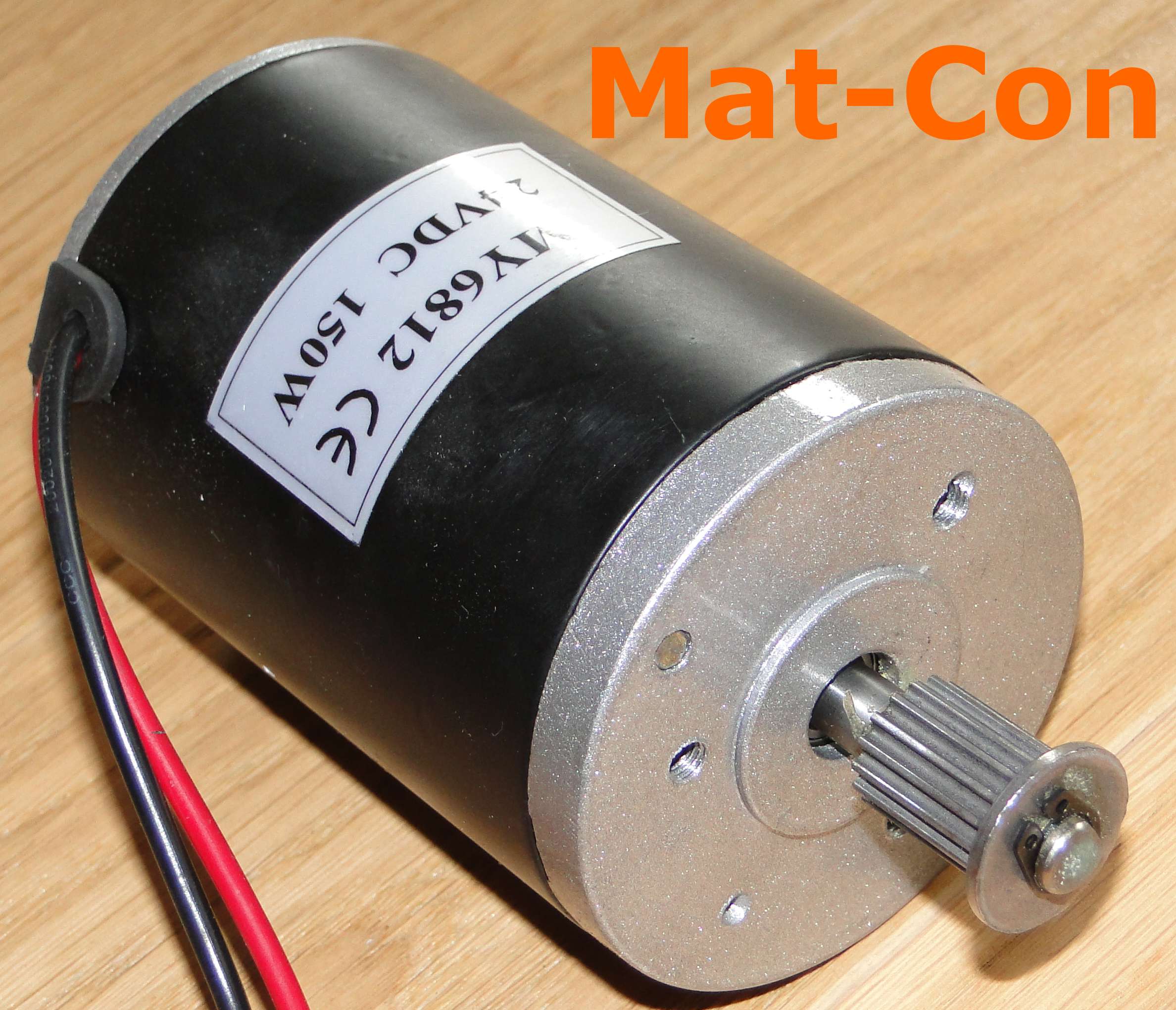

stock photo

Performance data:

power output

150 W / 12 V

rated current

<= 14,3 A

rated speed (rpm)

2400 - 2700

max. speed (rpm)

3500 +/- 5 %

current without load

0,6 – 1,1 A

rated torque

0,56 Nm

transmission

belt pulley (16 teeth, pitch 3M = 3mm), metal

shaft diameter

8 mm (milled groove one-sided 1 mm)

efficiency

>=68%

weight

1,4 KG


Characteristic curve:

Kennlinien
Click on picture to enlarge.

External dimensions:

housing length

11,1 cm

housing width / height/ diameter

6,8 cm

Technical drawing & dimensions:



MY6812 ZY6812 dimensions

Click on picture to enlarge.
Note: Three screw threads at the front plate for mounting


Further attributes:

-carbon brushes, 2pcs
-ball bearing
-Ingress Protection Rating IP–Code: IP33
-CE certified
-both sides turning
-legal warranty: 24 month



Areas of applications:

This direct current electric motor is suitable e. g. for electric scooter, (SMFC) scooter, e-scooter, fun-scooter, trottinette, pocket bike, pocketbike, tricycle, quad bike, electric quad bike, kids quad bike, longboard, electric board, e-board, electric bike, e-bike, recumbent bike, soap-box, rickshaw, trishaw, Velotaxi, tensile device, tensile device for wheelchairs, electric wheelchair, railway, garden railway, garden railway, small railway, big railway, steam railway, park railway, model railway, narrow gauge railway, cart, electric car, e-car, golf cart, hand bike, pedal boat, electric pedal boat, plane, helicopter, model making, miniature making, theater engineering, stage engineering, ... .

Also suitable as generators to power generation, e. g. for wind turbines, wind generators, windmills, waterworks, water wheels, water turbines, water generators etc.



Available accessories:

Controllers, lead acid batteries, chargers, throttles ...
