Worm gearing electric motor DC 350W 12V 60Nm 20RPM
In stock
Item name:
Worm gearing electric motor DC 350W 12V 60Nm 20RPM
Brand:
Ningbo Longway Motor Factory
Model/type & pictures:
73ZYJ08
|
|
|
|
Performance data: |
|
|
power output |
350W / 12 V |
|
rated current |
<=62 A |
|
rated speed (rpm) |
20 +/- 10 % |
|
max. speed (rpm) |
46 +/- 10 % |
|
current without load |
<= 2,5 A |
|
rated torque |
60 Nm +/- 5 % |
|
shaft |
length 20mm, diameter 20mm; groove with depth 2,5mm; |
|
transmission |
50:1 |
|
efficiency |
>=75% |
|
weight |
3,9 KG |

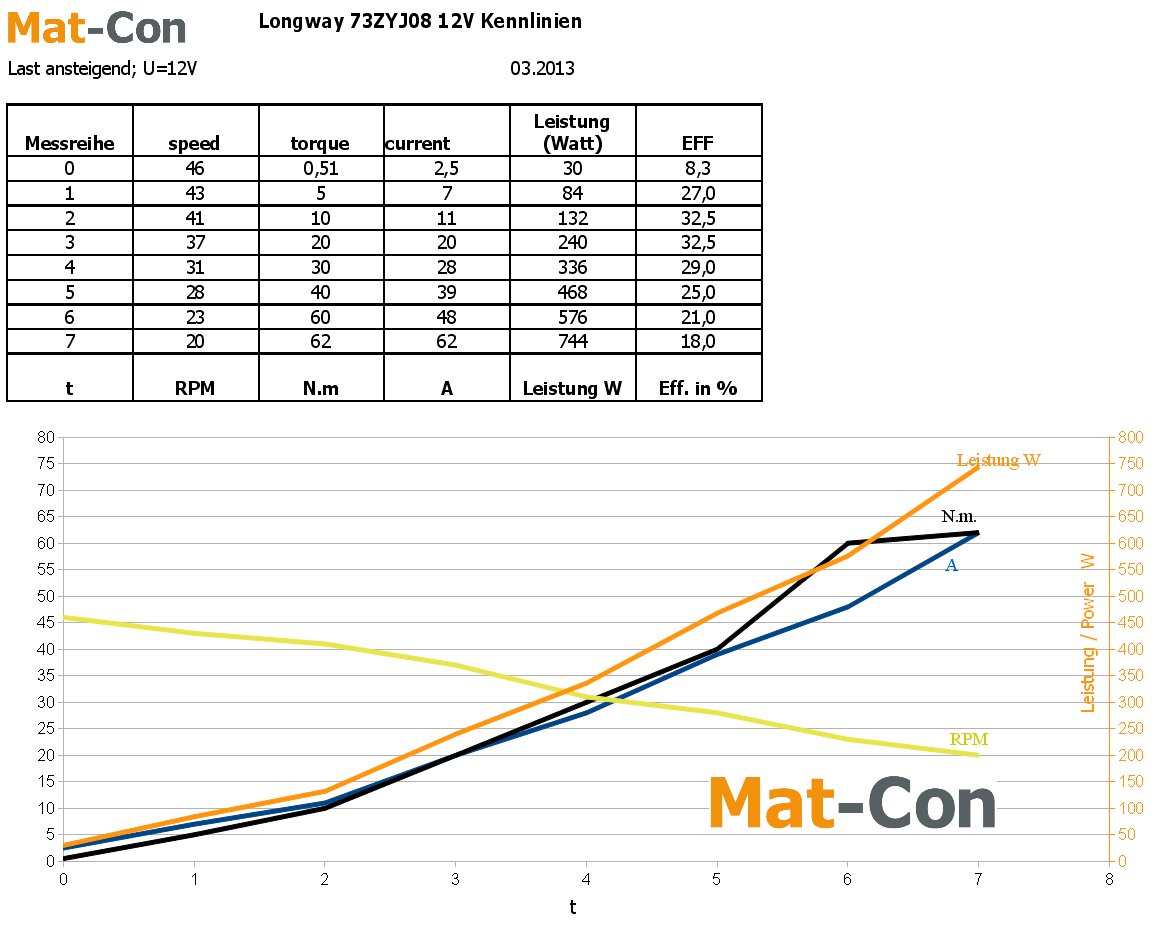

Characteristic curve:
Click on picture to enlarge.
|
External dimensions: |
|
|
housing length |
27,5 cm |
|
housing width / motor diameter |
9,6 cm |
|
total height with shaft (horizontal) |
8,5 cm |
Technical drawing & dimensions:
Click on picture to enlarge.
Further attributes:
-carbon brushes, 2pcs
-ball bearing
-Ingress Protection Rating IP–Code: IP33
-CE certified
-both sides turning
-plug connections protected
-legal warranty: 24 month
Areas of applications:
This worm gear direct current electric motor is suitable e. g. for machines, industry, model making, miniature making, theater engineering, stage engineering, ... .
Available accessories:
Lead acid batteries
