Planetary gearing electric motor BLDC 48V 3KW 120Nm

In stock
can be shipped within 20 days

1,100.00
Price incl. VAT, plus Shipping
Delivery weight: 20 kg


Item name:
planetary gearing electric motor 3KW (max. 5KW) 48V BLDC


Brand:
W A Electrical Machinery Co. Ltd.


Model/type & pictures:
WA_GB3KW

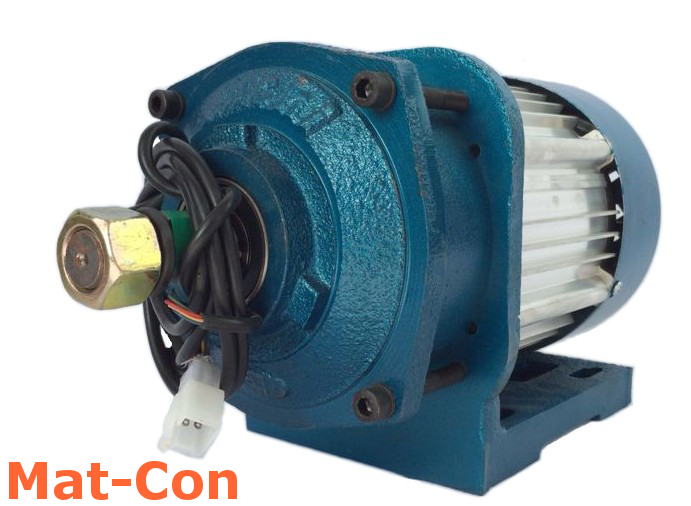

3KW Getriebemotor BLDC 48V

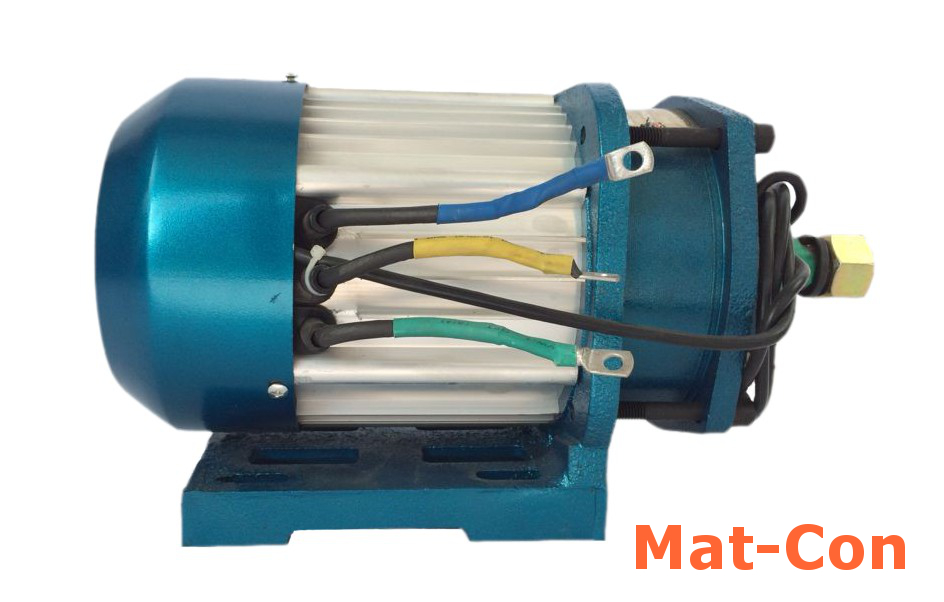

3KW Getriebemotor BLDC 48V Seitenansicht





Performance data:

power output

3000W (peak 5KW) / 48 V

rated current

<=60 A (max. 100A)

rated speed (rpm)

600 +/- 5 %

max. speed (rpm)

750 +/- 5 %

current without load

<= 5 A

rated torque

120 Nm (max. 180Nm) +/- 5 %

shaft

length 35mm, diameter 22 mm, groove&tongue, nut M20x1,5

transmission ratio

5,5:1

efficiency

>=88%

weight

18 KG



External dimensions:

housing length

336 mm

housing width

165 mm

total height (with plate)

185 mm



Plate dimensions:

length

165 mm

width

130 mm

lengthwised hole distance

103 mm

widthwised hole distance

102 mm



Further attributes:

-brushless(BLDC) motor with hall sensors
-3-phase
-ball bearing
-both sides turning
-operation noise <50 dB
-CE & CCC certified
-Ingress Protection Rating IP–Code IP54
-legal warranty: 24 month

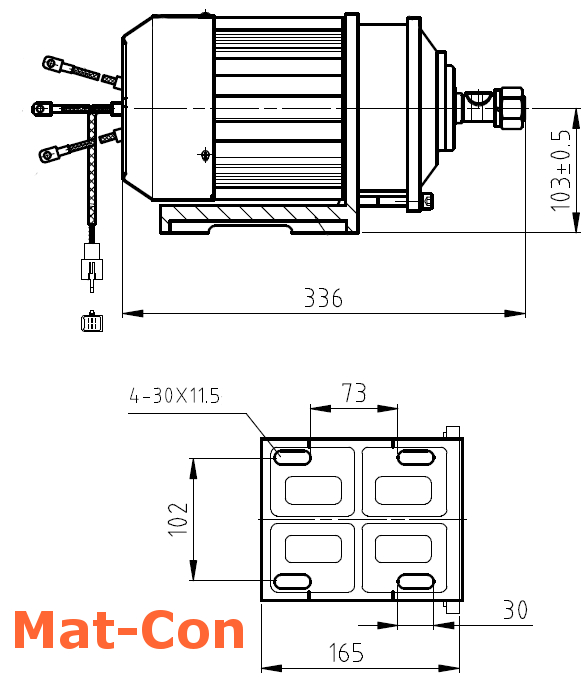

Technical drawing & dimensions:






Areas of applications:

This wearless direct current BLDC electric motor with planetary gearbox is suitable e. g. for e-scooter, tricycle, quad bike, electric quad bike, rickshaw, trishaw, Velotaxi, park railway, ,go-cart, electric car, e-car, mini car, city car, golf cart, model making, miniature making, boat engine, theater engineering, stage engineering, industry, machines... .



Available accessories:

BLDC Controller, lead acid battery, charger, throttle, pedal...
